Exploded Views of Charging System Components

Post by david58 »

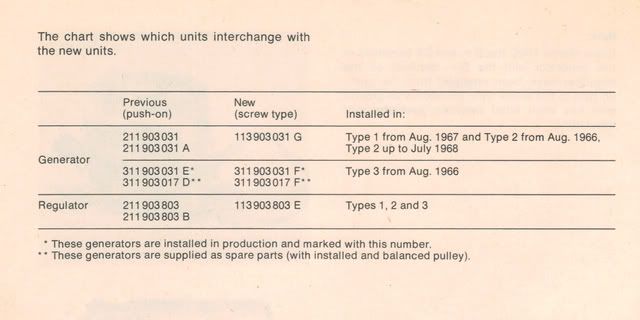

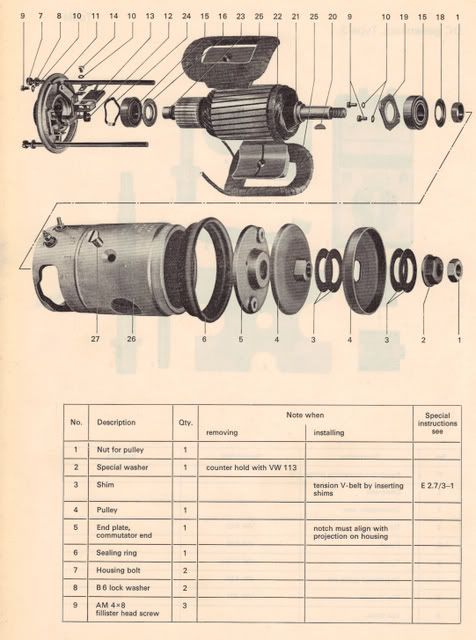

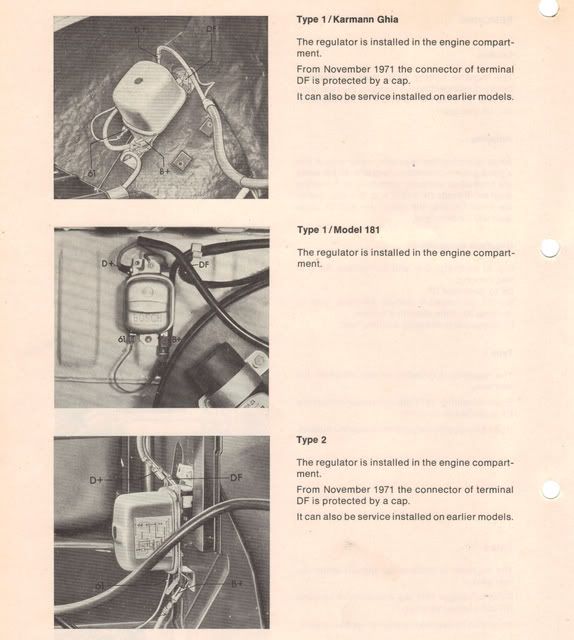

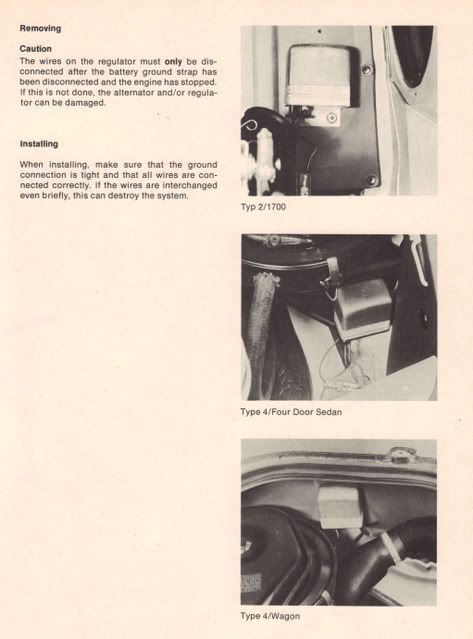

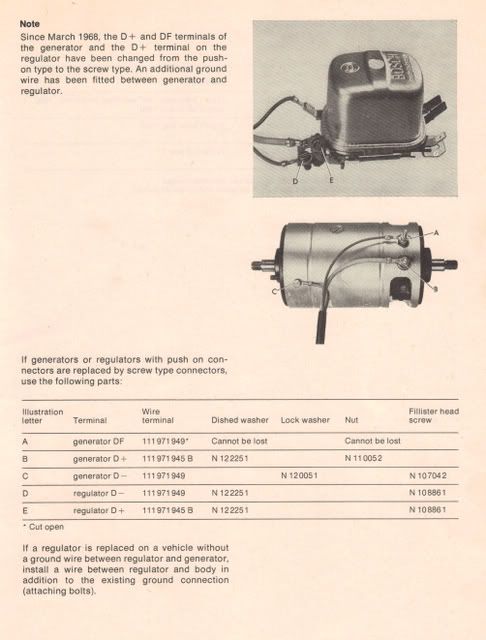

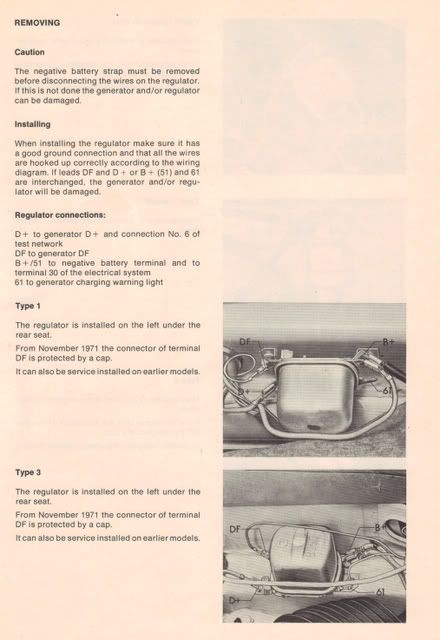

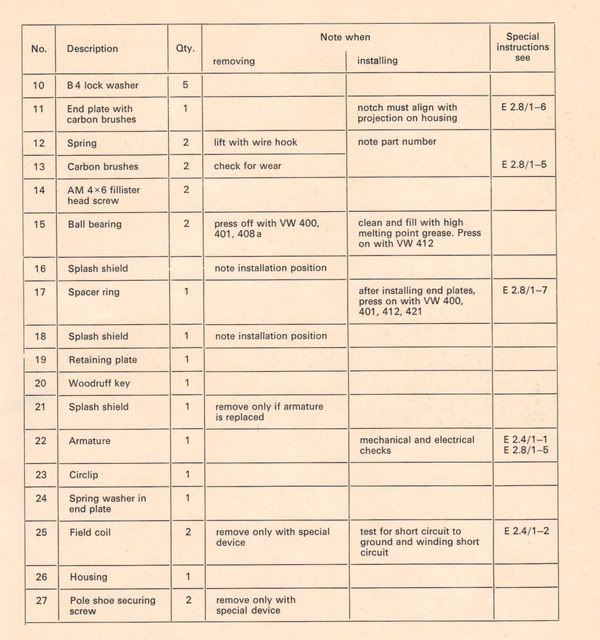

Generators and Regulators
Hot, humid air is less dense than cooler, drier air. This can allow a golf ball to fly through the air with greater ease, as there won't be as much resistance on the ball.
User avatar
david58
Moderator
Posts: 14101
Joined: Sun Oct 23, 2005 6:14 pm

Post by david58 »

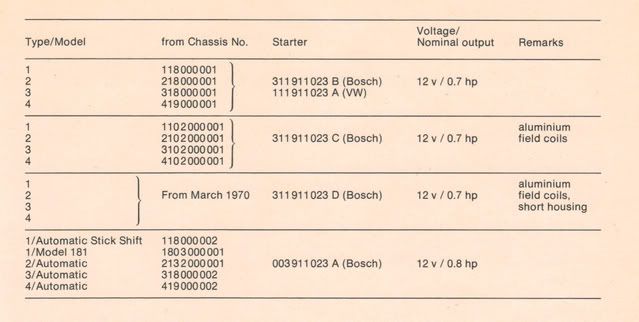

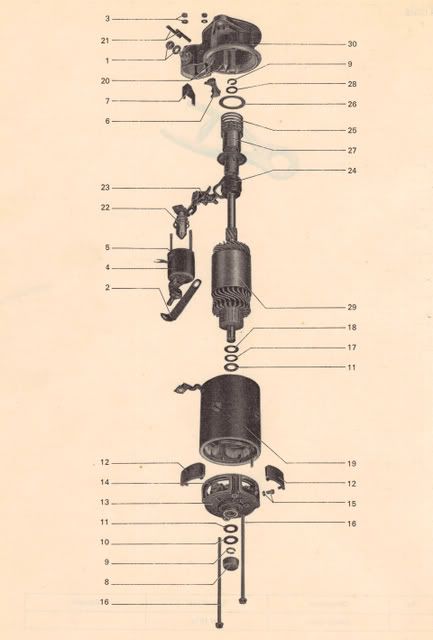

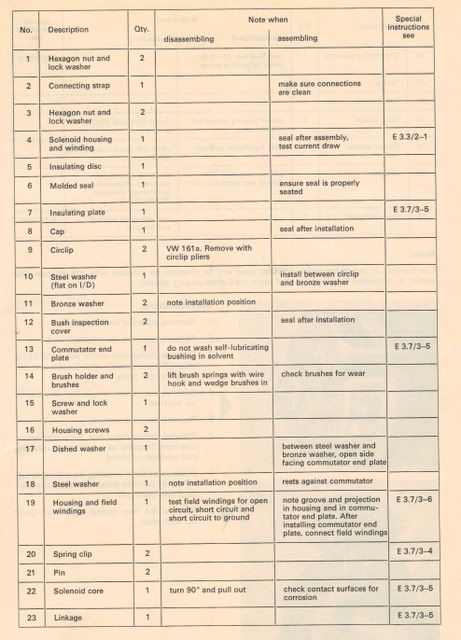

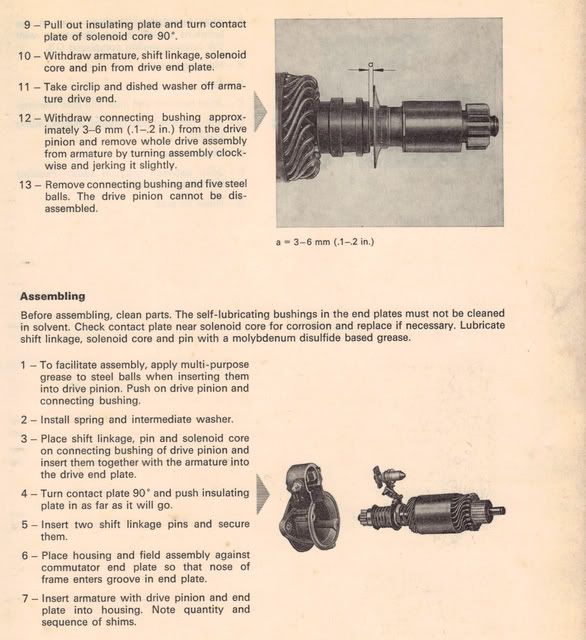

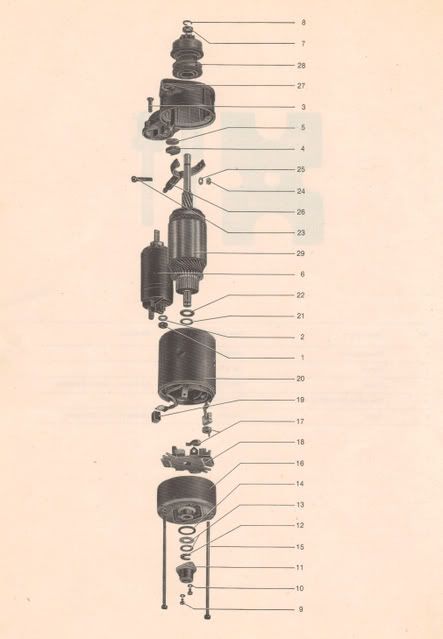

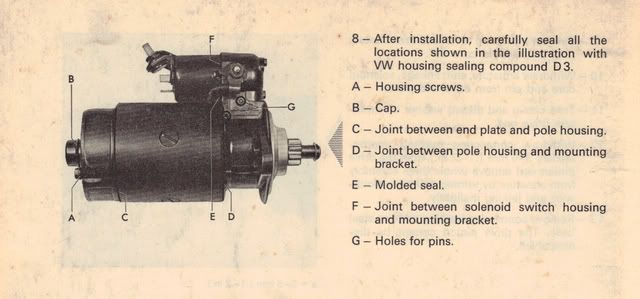

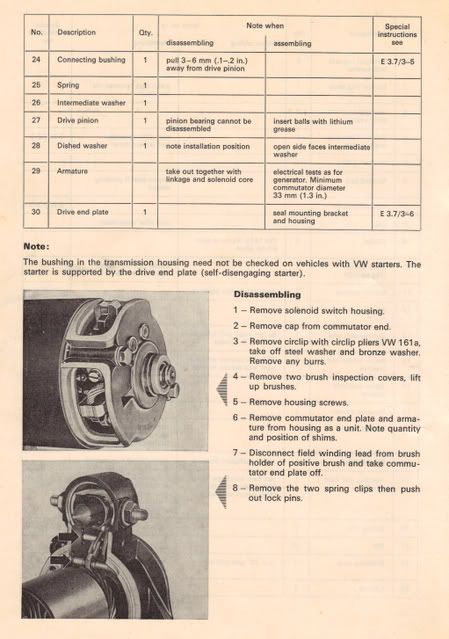

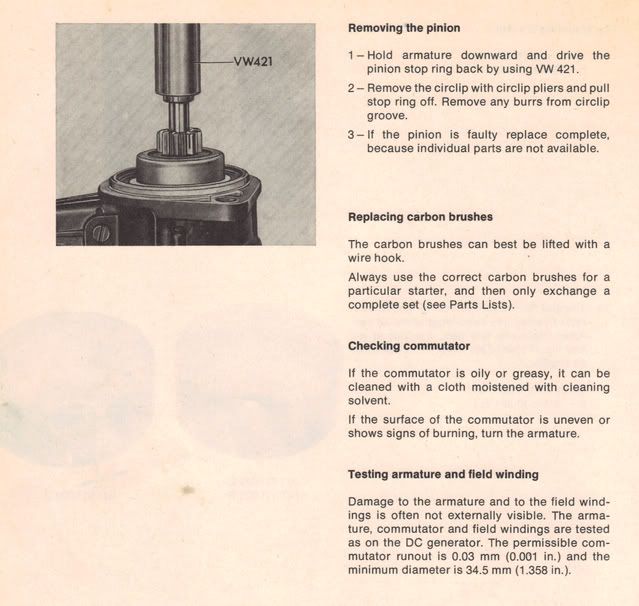

Different Starters and starting Components

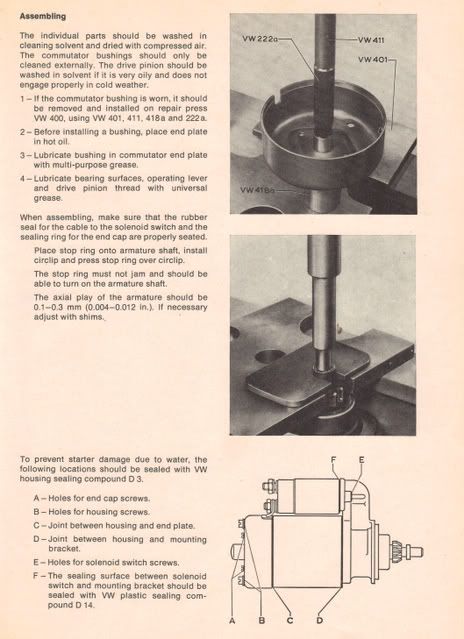

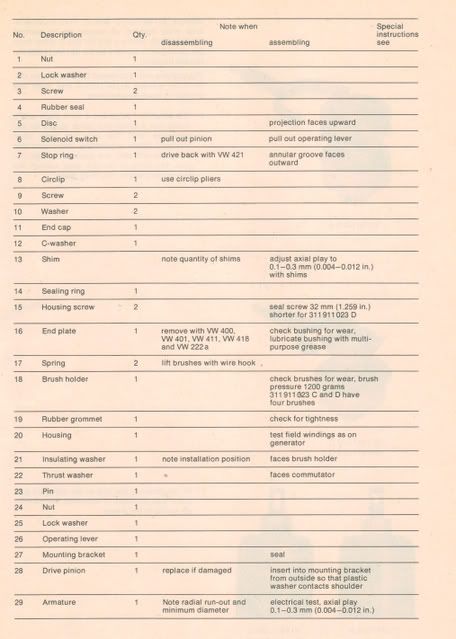

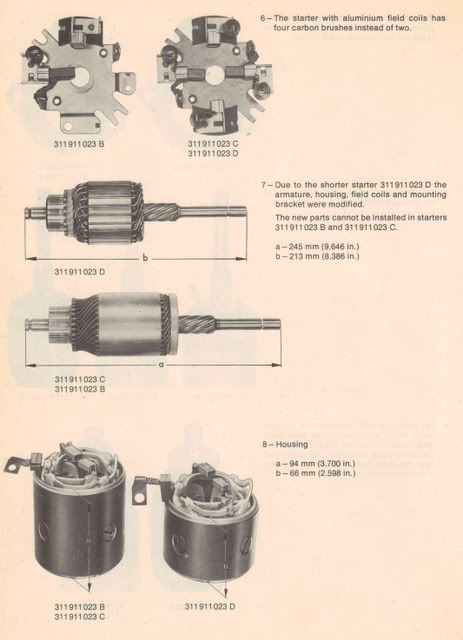

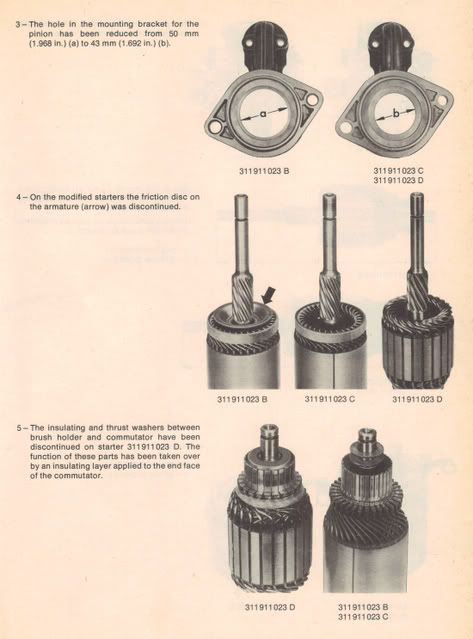

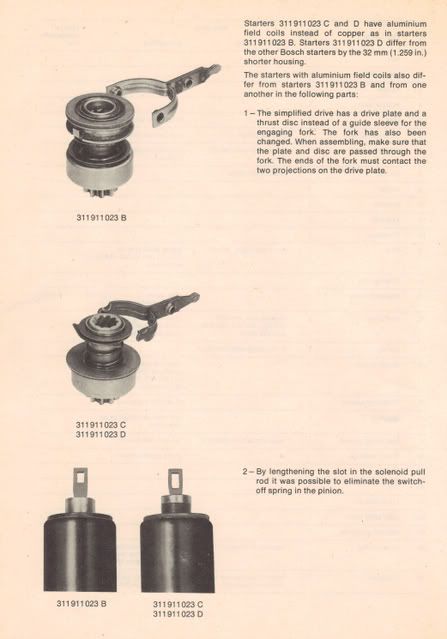

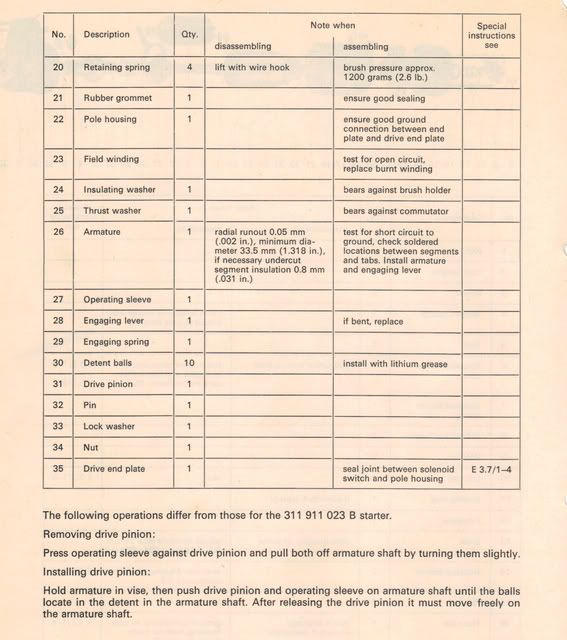

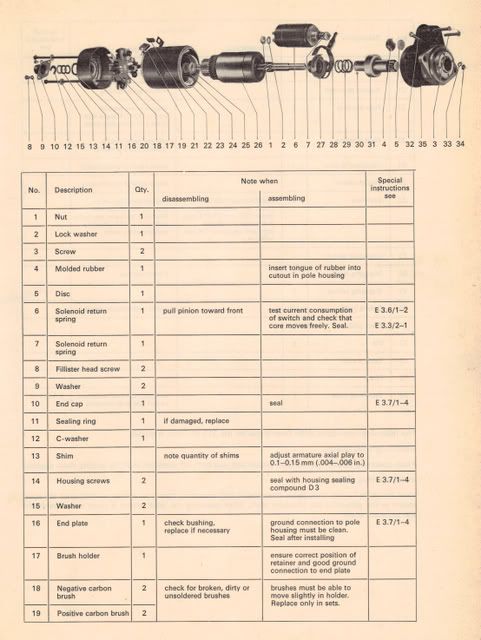

Bosch Starters 311911023 B, C, and D
Bosch Starter 003 911 023 A
VW Starter 111 911 023 A
Hot, humid air is less dense than cooler, drier air. This can allow a golf ball to fly through the air with greater ease, as there won't be as much resistance on the ball.
