VDO Gauge Wiring Link

Post by david58 » Thu Jul 23, 2009 12:32 pm

Hot, humid air is less dense than cooler, drier air. This can allow a golf ball to fly through the air with greater ease, as there won't be as much resistance on the ball.

Jeff Herriman
Posts: 13
Joined: Fri Aug 21, 2009 9:14 pm
Location: San Diego, CA

VDO Tachometer w Condensor

Post by Jeff Herriman » Sat Aug 22, 2009 4:37 pm

I have a VDO Tachometer that has a condensor attached to the tac body. Where do I hook up the Condensor wire? The car is a Puma with a fiberglass body. The electrics are in disarray. There are VW Brazillia parts installed but not hooked up.

Thanks for the help!
Jeff Herriman
Puma GTC
San Diego,CA

Jeff Herriman
Posts: 13
Joined: Fri Aug 21, 2009 9:14 pm
Location: San Diego, CA

VDO Tachometer/Instruments

Post by Jeff Herriman » Tue Aug 25, 2009 7:27 pm

Thank you for the wiring guide. It really helps. Next will look for proper senders.

Jeff
Jeff Herriman
Puma GTC
San Diego,CA

User avatar
david58
Moderator
Posts: 14072
Joined: Sun Oct 23, 2005 8:14 pm
Location: Georgia near Savannah

Re: VDO Tachometer w Condensor

Post by david58 » Tue Aug 25, 2009 7:53 pm

Jeff Herriman wrote:I have a VDO Tachometer that has a condensor attached to the tac body. Where do I hook up the Condensor wire? The car is a Puma with a fiberglass body. The electrics are in disarray. There are VW Brazillia parts installed but not hooked up.

Thanks for the help!
I haven't seen the condenser on the VDO gauges that you are talking about. Could you post a pic so we can weed this out?
Hot, humid air is less dense than cooler, drier air. This can allow a golf ball to fly through the air with greater ease, as there won't be as much resistance on the ball.

Jeff Herriman
Posts: 13
Joined: Fri Aug 21, 2009 9:14 pm
Location: San Diego, CA

VDO Tachometer

Post by Jeff Herriman » Wed Aug 26, 2009 10:06 am

The tachometer is in the shop now. When I get it back (week +!!) I will forward picture. Its an interesting animal.
Jeff
Jeff Herriman
Puma GTC
San Diego,CA

Jeff Herriman
Posts: 13
Joined: Fri Aug 21, 2009 9:14 pm
Location: San Diego, CA

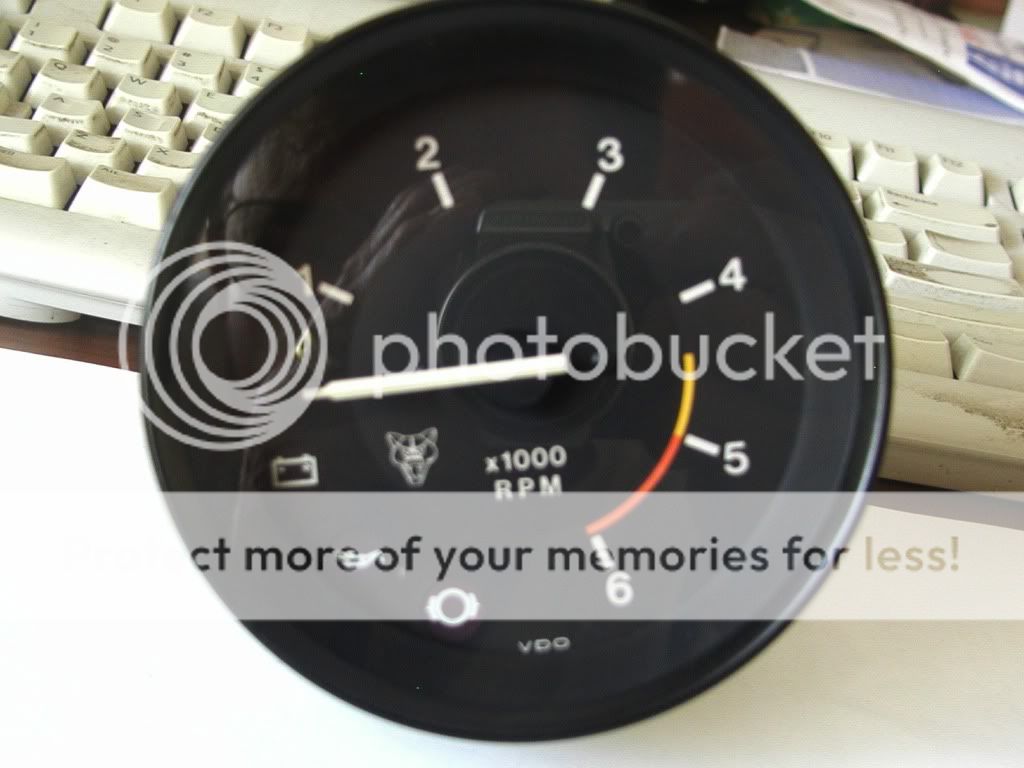

Puma VDO Tachometer with condensor

Post by Jeff Herriman » Thu Sep 03, 2009 1:01 pm

Jeff Herriman
Puma GTC
San Diego,CA

User avatar
david58
Moderator
Posts: 14072
Joined: Sun Oct 23, 2005 8:14 pm
Location: Georgia near Savannah

Re: Puma VDO Tachometer with condensor

Post by david58 » Thu Sep 03, 2009 1:10 pm

Your links don't work is this the correct pics?
Hot, humid air is less dense than cooler, drier air. This can allow a golf ball to fly through the air with greater ease, as there won't be as much resistance on the ball.

User avatar
Dale M.
Posts: 1640
Joined: Mon Oct 05, 2009 10:09 am
Location: Just a Little Bit West Of Yosemite Valley

Post by Dale M. » Mon Oct 05, 2009 10:14 am

Capacitor on back of unit really looks like something somebody has added on afterward for what ever reason.....

Dale
Lives his life vicariously through his own self.
1970 "Kellison Sand Piper Roadster"

madmike
Posts: 1470
Joined: Mon Jul 24, 2006 5:11 pm
Location: Atlanta,Michigan

Re: VDO Gauge Wiring Link

Post by madmike » Mon Mar 24, 2014 7:41 am

Link no workie

User avatar
Marc
Moderator
Posts: 23738
Joined: Thu May 23, 2002 2:01 am
Contact:

Re: VDO Gauge Wiring Link

Post by Marc » Mon Mar 24, 2014 8:59 am

The only logical reason for a condenser (AKA capacitor) that's grounded on one end would be as a "noise" filter.
It's unlikely that the vehicle needs filtering of the supply voltage to the gauge or to the illumination lamp, so someone must have added it at the signal lead to dampen voltage oscillations (perhaps the needle was jumping about too much for their liking). Ironically this places it in parallel with the condenser back on the distributor, increasing the capacitance of the primary circuit.
My conclusion is that if you need it at all, it should be attached to the same terminal as the signal lead coming from Term 1 on the coil.
