 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Fri Sep 30, 2011 4:35 pm
Offline
User avatar

Joined: Mon Feb 21, 2011 1:37 pm
Posts: 175
Location: Hamburg/Germany
Max Welton wrote:
The angle will be wrong. Might have to make a new TDC mark that can be viewed from the left.

Max

That would be a solution, but maybe its usefuller to find a other position for the sensor than a new position for the timing light to point at?

munch


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Fri Sep 30, 2011 5:53 pm
Offline

Joined: Fri Aug 19, 2011 12:57 pm
Posts: 17
The angle won't be wrong because you still look at the correct TDC mark on the pulley from the same plane as how you would originally set the timing. It is not skewed to the left or right. The pictures don't show it too clearly. I'll try and get better pics.


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Fri Sep 30, 2011 6:13 pm
Offline

Joined: Fri Aug 19, 2011 12:57 pm
Posts: 17
Mounting the sensor at another location is a way around that. I've looked at many places, but not much places that offer a lot of room and a clear view for mounting and adjustment. I did mines this way because it was easy access to everything for install, adjustment, and visual checks.


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Thu Nov 10, 2011 3:12 pm
Offline

Joined: Fri Aug 19, 2011 12:57 pm
Posts: 17

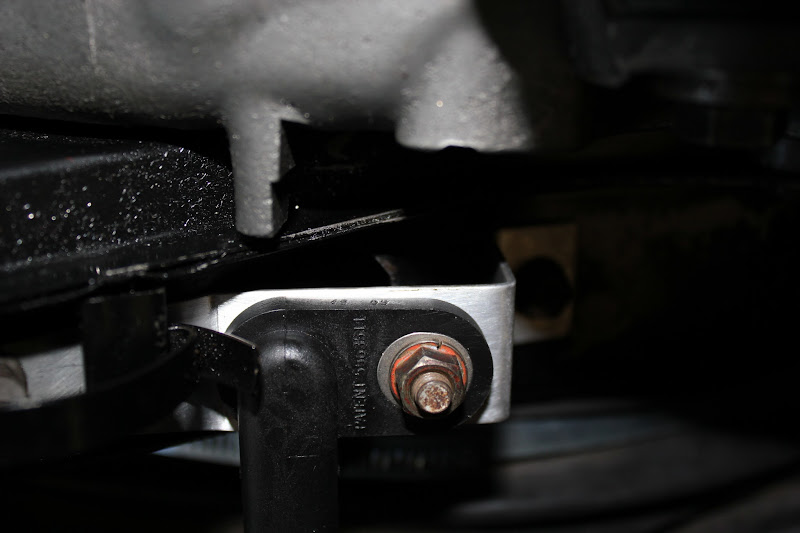

If you look closely, you can see the hole in the fan shroud that allows a viewable access to the pulley to allow timing. In this picture you can't see the pulley, but it is def viewable and timing can be adjusted easily.



Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Thu Nov 10, 2011 6:10 pm
Offline
User avatar

Joined: Mon Jun 03, 2002 2:01 am
Posts: 2282
Location: Black Forest, Colorado
Now I see. Very nice.

Max

_________________
http://www.maxwelton2k.net/
MS-3 Engine : http://www.maxwelton2k.net/ghia/Engine/


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Fri Nov 11, 2011 6:21 am
Offline
User avatar

Joined: Mon Feb 21, 2011 1:37 pm
Posts: 175
Location: Hamburg/Germany
Ah, ok! That looks practicable.
Any experience with higher revs? The typ3 fan-construction is not famous for withstanding very high rpms. Your triggerwheel is far away from the last crankbearing and a imbalance at this place maybe very bad.

Dont misunderstand my asking, iam very happy that somebody is searching for a type3 solution. :D

munch


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Fri Nov 11, 2011 2:22 pm
Offline

Joined: Fri Aug 19, 2011 12:57 pm
Posts: 17
Not yet, I haven't had a chance to fully install my FI. I don't think 4 45mm throttle bodies would do well on a 1641cc engine. I'm waiting to build up a larger 2 liter motor for the FI install. Almost everything is ready on my car though. Megasquirt, wiring harness, VR sensor, and trigger wheel are installed though. No problems with my 1641cc engine revving to 4500 rpm. My existing motor isn't setup for anything higher.

The design of the trigger wheel is balanced. If you want to take it a step further (which I would recommend), you should have the wheel and pulley balanced together. After installation of the trigger wheel onto the pulley, a very small amount was needed to be removed from the pulley to have it dynamically balanced. I'm sure this was because an uneven amount of metal was removed during the tapping process. The amount removed was very very little so It prolly won't make a difference.


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Sat Nov 12, 2011 10:26 am
Offline
User avatar

Joined: Mon Feb 21, 2011 1:37 pm
Posts: 175
Location: Hamburg/Germany
Do you know if the Trigger wheel is working together with the hall effect crankshaft position sensor from diyautotune?
http://www.diyautotune.com/catalog/hall ... p-479.html

munch


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Sun Nov 13, 2011 3:13 am
Offline

Joined: Fri Aug 19, 2011 12:57 pm
Posts: 17
I don't see why not? A trigger wheel is a trigger wheel.


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Sun Nov 13, 2011 5:39 am
Offline
User avatar

Joined: Mon Feb 21, 2011 1:37 pm
Posts: 175
Location: Hamburg/Germany
And on the mechanical side? Is the sensor long enough for that particular mounting situation?

munch


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Mon Nov 14, 2011 9:30 pm
Offline

Joined: Fri Aug 19, 2011 12:57 pm
Posts: 17
looking at the sensor, it is to short to mount it the way I did. You could however mount it at the opposite end (bottom) of the shroud. It'll be pretty hard to do and it'll be close to the header.


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Fri Nov 18, 2011 1:56 am
Offline

Joined: Fri Aug 19, 2011 12:57 pm
Posts: 17
Did a mock up of the trigger wheel and VR sensor tonight. Now that I know everything fits and works as they should, I'll go and get everything powder coated to make pretty pretty. Here are some pics:





Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Mon Nov 21, 2011 5:56 am
Offline
User avatar

Joined: Mon Feb 21, 2011 1:37 pm
Posts: 175
Location: Hamburg/Germany
Whats about having the Sensorposition here?
Attachment:


munch


You do not have the required permissions to view the files attached to this post.


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Mon Nov 21, 2011 9:30 pm
Offline

Joined: Fri Aug 19, 2011 12:57 pm
Posts: 17
You can install it anywhere you want. I just utilized the hole that was already there.


Top
 Profile

 Post subject: Re: Electronic Ignition Trigger Wheels
PostPosted: Thu Mar 21, 2013 8:17 pm
Offline

Joined: Fri Jan 25, 2013 11:59 pm
Posts: 42
Do realize that assembly will need to be rebalanced.

_________________
My Store: http://www.DirtyRacingAndRods.com
My Blog: http://blog.dirtyracingandrods.com/

If you can't run from John Law with it... It ain't no good!
