pic's of megasquirt mounted

Fuel Supply & Ignition Systems

Moderator: Tom Notch

miniman82
Posts: 3944
Joined: Sun Apr 27, 2008 5:36 pm
Location: Norfolk, VA

Post by miniman82 » Mon Jul 28, 2008 9:02 pm

It's more of a headache to build that cable than it is to buy it, trust me. :wink: DIY Autotune is tops with MS stuff; service, quality and price are A1 in my book.

User avatar
BOB JOHNS
Posts: 208
Joined: Thu Jul 26, 2001 2:01 am

Post by BOB JOHNS » Mon Jul 28, 2008 9:40 pm

they are no doubt real good at what they do ..... i am just tryn to this on a budget .... just a had a boy he is almost 3 months old ... but i might just send it to them ......

User avatar
MarioVelotta
Posts: 3812
Joined: Wed Mar 12, 2003 3:01 am
Location: Monroe, Wa.
Contact:

Post by MarioVelotta » Tue Jul 29, 2008 11:42 pm

Oic, all you need as a little 45 watt pencil solder iron. It will take an hour or so and if you have a vise that will make it go pretty quick. When I made mine I just did every pin. I'm really glad I did that so I can use all the spare pins without messing with the harness again.
The Dub Shop
Mario@thedubshop.net
2276 Turbo - 92 Octane
11.537 @ 115.74mph - 15psi
1600 S.C. - 92 Octane
15.47 @ 83mph - 13psi
1600 NA ITB - 18sec :lol:
Facebook-Tech-Store

User avatar
BOB JOHNS
Posts: 208
Joined: Thu Jul 26, 2001 2:01 am

Post by BOB JOHNS » Wed Jul 30, 2008 5:22 pm

I been coolecting the piece's .. need manafolds, intake, ehaust and last but not least a hybrid t3/t4ballbearing turbo,blow off valve..... :twisted: :twisted: ineed to make a shorter cable and then and with the left over iam going to make a new loom from the relay box to the appriot places.. :lol: going to be sweet...




[/img]Image
Last edited by BOB JOHNS on Wed Jul 30, 2008 8:44 pm, edited 1 time in total.

User avatar
MinamiKotaro
Posts: 2071
Joined: Sat Aug 06, 2005 8:26 am

Post by MinamiKotaro » Wed Jul 30, 2008 8:17 pm


George II, my MS1v3.57.
'67 Beetle, 2276
MS-1 v3.57

User avatar
MarioVelotta
Posts: 3812
Joined: Wed Mar 12, 2003 3:01 am
Location: Monroe, Wa.
Contact:

Post by MarioVelotta » Wed Jul 30, 2008 10:08 pm

When are you going to mke use of that sweet sweet db15 plug :lol:
The Dub Shop
Mario@thedubshop.net
2276 Turbo - 92 Octane
11.537 @ 115.74mph - 15psi
1600 S.C. - 92 Octane
15.47 @ 83mph - 13psi
1600 NA ITB - 18sec :lol:
Facebook-Tech-Store

User avatar
BOB JOHNS
Posts: 208
Joined: Thu Jul 26, 2001 2:01 am

Post by BOB JOHNS » Thu Jul 31, 2008 4:57 pm

hopefully soon i will be cutting that sweet loom ... Iam going to make a 12 in cable and then use the rest for the loom from the relay box...

scotlandstu
Posts: 55
Joined: Sat Jun 16, 2007 2:45 pm

Post by scotlandstu » Wed Aug 20, 2008 3:20 pm

MarioVelotta wrote:Is your VR sensor 90* to the trigger wheel? Have you run it that way yet? Curious how well it works.
Have had it running now and it appears to work fine, not seen any more that 2.5K yet as still waiting for my backbox with lamda sensor bung in it so if you reved it the sensor fell off where it was balanced and it dies.... :lol:

User avatar
panel
Posts: 3715
Joined: Sun Sep 24, 2000 2:01 am
Location: Victoria B.C. Canada
Contact:

Post by panel » Tue Sep 09, 2008 11:18 pm

Mine (is a mess) but mounted under the Westy seat in the back of the bus. I also relocated the battery there years ago to clean up the motor compartment.

Subaru JDM EJ20 Turbo bus
Built by Germans powered by Japanese and brought together by Canadians

bugsterkafer
Posts: 780
Joined: Mon Dec 01, 2003 8:30 am

Post by bugsterkafer » Mon Sep 15, 2008 5:39 am

Here is mine, mounted behind the rear seats of my bug, not so messy since the pic :lol:


User avatar
MarioVelotta
Posts: 3812
Joined: Wed Mar 12, 2003 3:01 am
Location: Monroe, Wa.
Contact:

Re: pic's of megasquirt mounted

Post by MarioVelotta » Sat Nov 07, 2009 3:24 pm

Bump
The Dub Shop
Mario@thedubshop.net
2276 Turbo - 92 Octane
11.537 @ 115.74mph - 15psi
1600 S.C. - 92 Octane
15.47 @ 83mph - 13psi
1600 NA ITB - 18sec :lol:
Facebook-Tech-Store

User avatar
WickedWagens
Posts: 705
Joined: Fri Sep 02, 2005 11:33 pm

Re: pic's of megasquirt mounted

Post by WickedWagens » Sun Nov 08, 2009 2:12 am

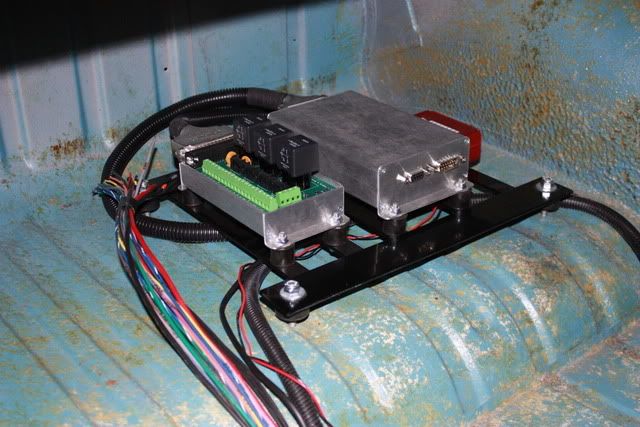

Here is mine so far. I made a rack to hold the ecu, relay board, and wideband. Everything is rubber mounted and then the rack is rubber mounted also.

User avatar
MinamiKotaro
Posts: 2071
Joined: Sat Aug 06, 2005 8:26 am

Re:

Post by MinamiKotaro » Sun Nov 08, 2009 8:04 pm

panel wrote:Mine (is a mess) but mounted under the Westy seat in the back of the bus. I also relocated the battery there years ago to clean up the motor compartment.

Holy crap! I thought mine was bad. :lol:

miniman82
Posts: 3944
Joined: Sun Apr 27, 2008 5:36 pm
Location: Norfolk, VA

Re: pic's of megasquirt mounted

Post by miniman82 » Sun Nov 08, 2009 11:52 pm

That's nothing, have you seen mine on page 1? :shock:

miniman82
Posts: 3944
Joined: Sun Apr 27, 2008 5:36 pm
Location: Norfolk, VA

Re: pic's of megasquirt mounted

Post by miniman82 » Sun Nov 08, 2009 11:54 pm

It's a lot neater looking now, I had some work done to it.


Post Reply
